Dr.Z MAZ 38 SR.NR

“Big rockin’ amp with that undeniable Dr. Z sound!” – Dr. Z

Specifications

Power Output38 Watts

Output Tubes4 – EL84

Preamp Tubes3 – 12AX7

Rectifier1 – 5AR4

ControlsVolume, Treble, Mid, Bass, Master Volume, Cut

Other4, 8, 16 Ohm
Effects loop
EQ Bypass (New variable boost footswitch included)

ConfigurationsHead, 1×12 Studio Combo, 1×12 Ultra Lite Combo, 2×10 Ultra Lite Combo, 2×12 Combo

ColorsBlack, Blonde, Red

Dimensions & WeightHead: 19” W, 9 3/4” H, 9 1/2” D; 35 lbs.
1×12 Studio Combo: 19 ¼” W, 19 ½” H, 10 ½ ” D; 41 lbs.
1×12 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 44 lbs.
2×10 LT Combo: 22 1/2” W, 20 1/8” H, 10” D; 49 lbs.
2×12 Combo: 27 1/2″ W, 22 1/8″ H, 10″ D; 68 lbs.

Owners ManualDownload

General Information

Originally built as a 3×10 combo at the request of Joe Walsh, the ever versatile Maz 38 NR has been gracing large stages and corner clubs for years. The 38 NR will give you plenty of clean headroom and sweet driven tones for stages of all sizes. The 38 NR features a split load cathode biased output section which yields an authority not heard in many EL84 powered amps. Compared to the reverb equipped Maz 38 you get more drive and low end thrust. The NR has a very rich dynamic gain with a tight bottom and superb clarity. It’s an excellent choice for discerning rock and roots music players.

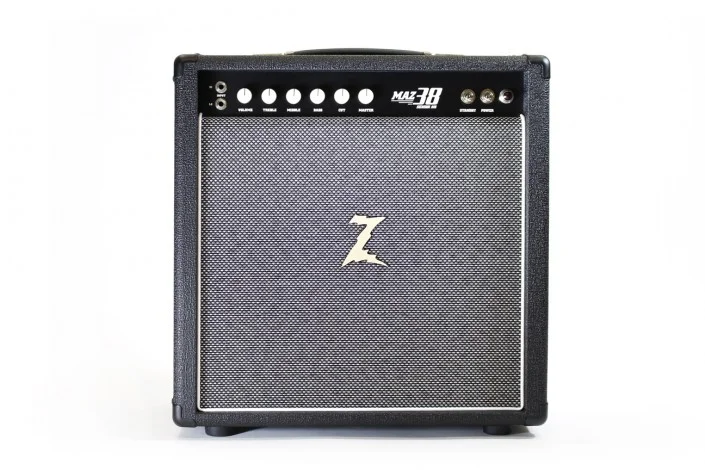

The front panel features Volume, Treble, Middle, Bass, Master, and the ever versatile Cut control. The back panel features a 4, 8, and 16 ohm speaker out. An effects loop and our EQ bypass function is also standard.  The footswitchable EQ bypass give a great lead boost which effectively makes the 38 NR a 2 channel amp. The 38 NR is powered by a quartet of cathode biased EL84s, has three 12AX7s in the front end, and a 5AR4 rectifier. With 38 watts at your finger tips you can move enough air to get your guitar out in front of the band.
